Airguard Envirocare SMC-AG Coale cer Panel Filter i built for demanding air intake environment where high airflow.
Brand
Airguard Envirocare
Flow Rate
0.25 – 0.79 m³/s (900 – 2,840 m³/h) at 1.5 – 2.5 m/s
Division
Filtration
Efficiency
Mesh grade
Industry
Oil & Gas, Power Gen, Marine, Wind, HVAC
Temperature
upto 80°C
Application
Offshore, Land-based
Height
407 / 500 / 598 mm
Technology
Mechanical/inertial capture and coalescing (knitted metal mesh)
Width
407 / 500 / 598 mm
Product Type
Filter Panel
Depth
20 or 50 mm
Product Style
Knitted Mesh Panel, Cleanable
OD
n/a
Media
Crimped Knitted Monofilament Stainless Steel Mesh, between welded or expanded SS mesh
ID
n/a
Construction
Stainless Steel 304L / 316L
Weight
2 KG or 4lb
Classification
Mesh grade
Bespoke
Available
Product
SMC-AG
Altair Systems
Altair Part Numbers
Gas Turbine Manufacturers
Industrial Sector

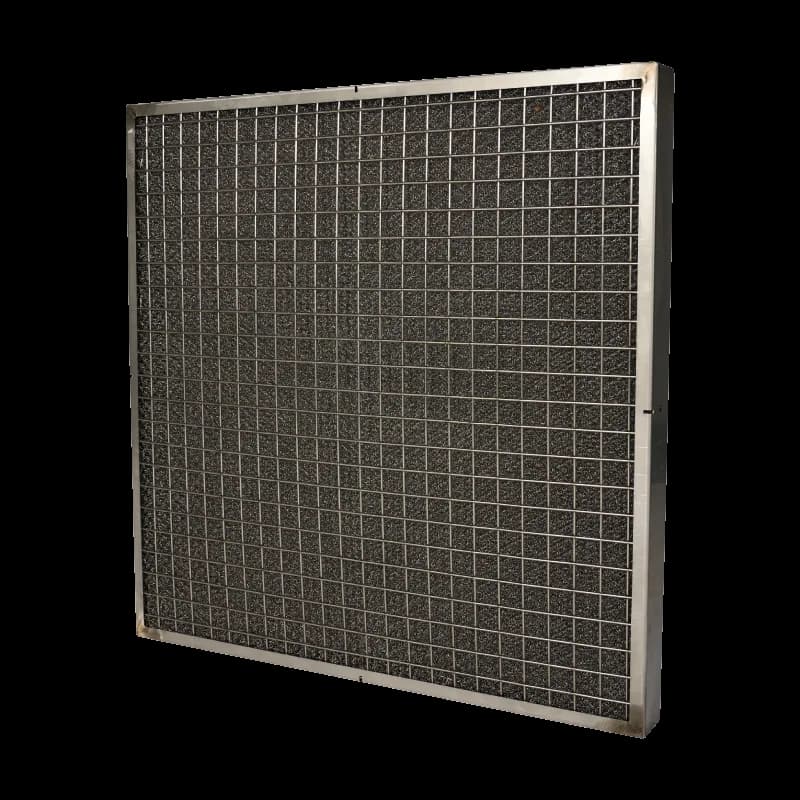

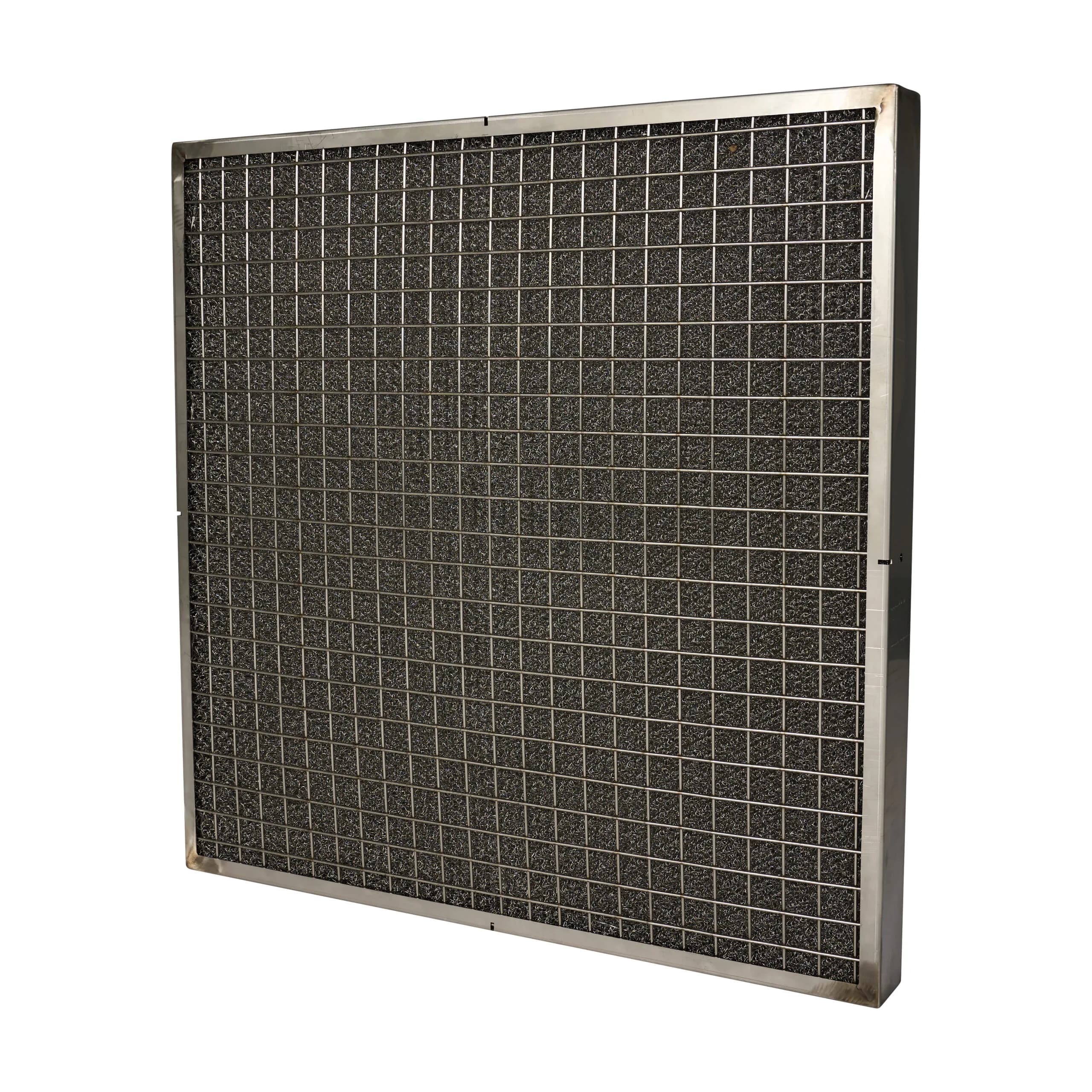

The SMC-AG Coalescer Panel Filter is a permanent stainless-steel coalescer panel and an OEM-equivalent replacement for Altair System 2, Altair Neptune and Altair Vega coalescer panels. Made from stainless-steel mesh rather than fibrous or foam media, it is cleaned rather than replaced, helping reduce filter replacement costs for gas turbine air intake systems, offshore platforms, onshore power stations and marine vessels where reliable filtration, easy maintenance and filter availability matter.
The SMC-AG core uses crimped, knitted monofilament stainless steel mesh held between layers of stainless steel welded or expanded mesh, giving the panel rigidity and long service life under continuous high-velocity airflow. The frame is available in 304L stainless steel for most industrial and onshore applications or 316L stainless steel for offshore, marine and coastal environments with higher salt exposure. Panels are available in 22 mm and 50 mm depths and supplied with drain holes, adjoining clips and seals for a secure, leak-free fit.
Share part number/spec, dimensions, airflow and efficiency, and our team will respond within 24 hours.
From purchase order to delivery on site. Every SMC-AG is built, checked and shipped by our own team.
Common questions about SMC-AG.
Yes. The SMC-AG is manufactured as an OEM equivalent for Altair System 2, Altair Neptune, and Altair Vega, and cross-references directly to Parker Hannifin/Altair part numbers SMC/006496F, SMC/006507F, SMC/006593F, P2C-1-002, P2C-1-003, and P2C-1-004.
Standard sizes are 16 x 16 x 2, 20 x 20 x 2, and 24 x 24 x 2 inches, with non-standard sizes available to order.
As a UK-based manufacturer, Airguard Envirocare produces the SMC-AG locally to the same construction standard and material specification as the OEM part, cutting out import lead times and distributor markups without reducing quality.
The SMC-AG is a permanent, cleanable stainless-steel coalescer panel filter designed for demanding applications including gas turbine ventilation, diesel and gas engine air intake, platform HVAC and offshore wind turbine ventilation.
Verified Parker Hannifin / Altair cross-reference numbers published for the SMC-AG include SMC/006496F, SMC/006507F, SMC/006593F, P2C-1-002, P2C-1-003 and P2C-1-004. Compatibility should still be checked against the installed filter specification.
Yes. The SMC-AG is listed as suitable for Altair System 2, Altair Neptune and Altair Vega applications.
Yes. The SMC-AG is published as a permanent and cleanable filter, with a robust stainless-steel construction and no risk of media carryover.
Yes. The published technical features state that the SMC-AG is designed for high velocities while maintaining a low pressure drop.
Yes. Standard and non-standard sizes can be supplied, with 22 mm and 50 mm depths, drain holes, adjoining clips, and seals available according to the application requirements.
SMC-AG should be selected according to the environmental conditions stated in its product specification, including factors such as dust, moisture, salt, humidity, temperature and airborne contamination where applicable. The installed system and required filtration performance should be checked before selection.
Where SMC-AG is identified as Altair-compatible, Airguard Envirocare positions it as an OEM-equivalent or specification-matched replacement. Exact compatibility should be confirmed against the installed filter's part number, dimensions and required performance. The available product information identifies compatibility with Altair System 2, Altair Neptune and Altair Vega
Yes. Airguard Envirocare can provide available technical information for SMC-AG, including technical datasheets, technical drawings and other relevant information on request.
The SMC-AG manufacturing origin is the United Kingdom.
Depending on the product, order requirements and delivery location, SMC-AG can be delivered in approximately 2 to 7 working weeks.
Use of an alternative filter should not be described as automatically voiding a gas turbine warranty. Warranty terms are set by the turbine OEM and the applicable contract, so customers should confirm the requirements with the OEM or operator before installation. Where this product is used as an OEM-equivalent replacement, its dimensions and performance specifications should be verified for the specific installation.
Yes. Airguard Envirocare offers a 12-month manufacturer's warranty for SMC-AG.
