Airguard Envirocare PC2-AG provide an OEM-equivalent coale cer panel filter for Altair Sy tem 2, Altair Neptune, Altair Vega and other compatible air intake y tem .
Brand
Airguard Envirocare
Flow Rate
Up to 9 m/s face velocity (1,771 FPM)
Division
Filtration
Efficiency
G3
Industry
Oil & Gas, Power Gen, Marine, Wind, HVAC
Temperature
n/a
Application
Offshore, Marine, Land-based
Height
Standard and non-standard, to holding frame
Technology
Coalescing and Mechanical Filtration (3-stage vane/coalescer/vane)
Width
Standard and non-standard, to holding frame
Product Type
Filter Panel
Depth
n/a
Product Style
Corrugated Coalescer Panel, Cleanable
OD
n/a
Media
Synthetic Media Core, between Stainless Steel Wire Mesh
ID
n/a
Construction
Stainless Steel 304L / 316L channel frame and mesh
Weight
2.5 KG or 5 lb
Classification
G3 (EN 779:2002); 80% gravimetric arrestance
Bespoke
Available
Product
PC2 – AG
OEM System
OEM Part Number
Gas Turbine Manufacturers
Environment
Industrial Sector

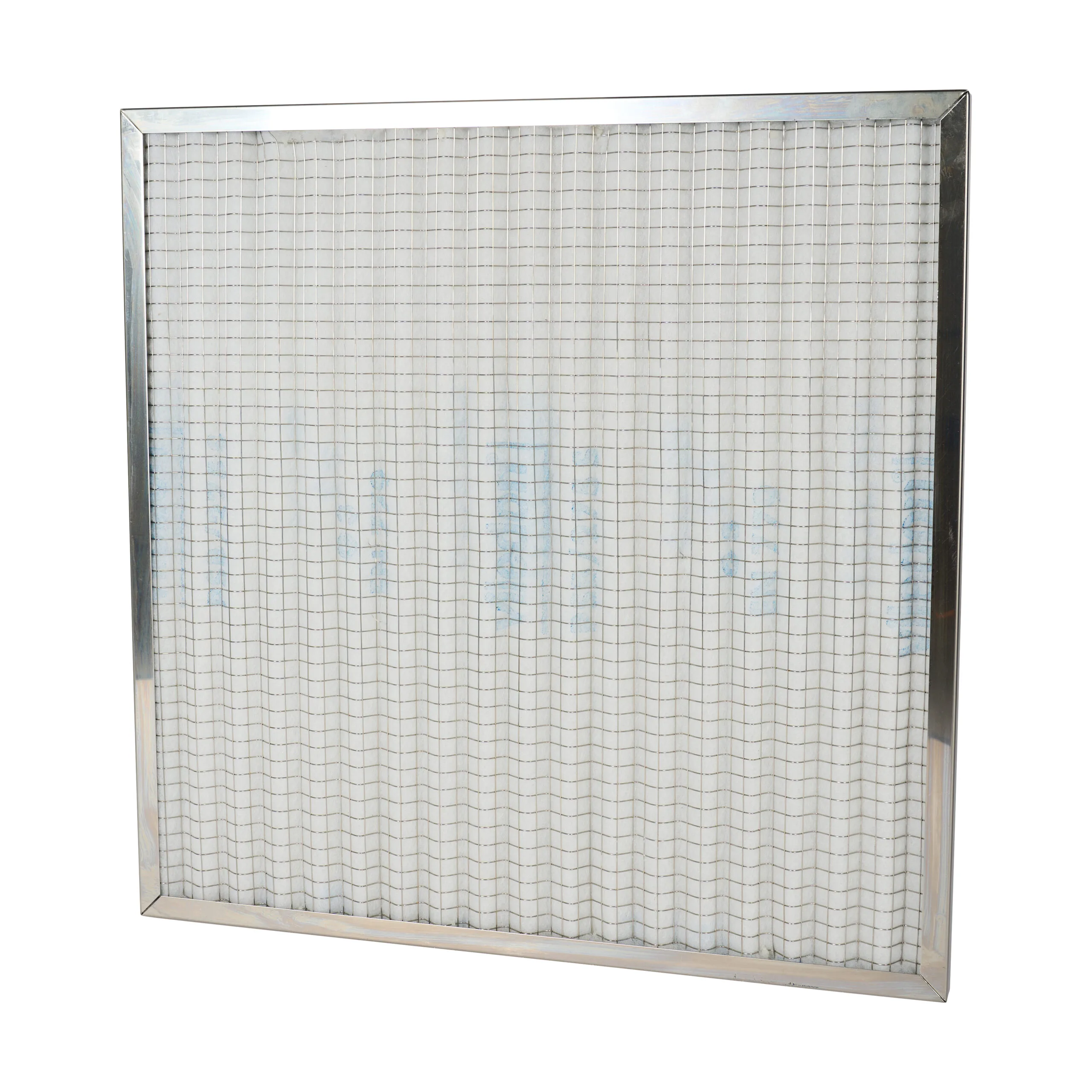

The PC2-AG is an OEM-equivalent coalescer panel filter and direct replacement for the Premaburg PC2 system, designed to remove moisture droplets, salt mist and liquid aerosols from high-velocity air. It is suited to offshore platforms, coastal power stations, marine propulsion and turbine intake systems, helping protect turbines, engines and downstream equipment in moisture- and salt-heavy environments.
The PC2-AG combines synthetic coalescing media with stainless steel mesh to remove moisture and salt aerosols while supporting the media and preventing sag or carryover. Its pleated frame increases surface area and is available in 304L or 316L stainless steel. 316L suits offshore, coastal, and marine environments, while 304L is a cost-effective choice for less aggressive onshore conditions. Both are cleanable and designed for repeated use.
Share part number/spec, dimensions, airflow and efficiency, and our team will respond within 24 hours.
From purchase order to delivery on site. Every PC2–AG is built, checked and shipped by our own team.
Common questions about PC2–AG.
The PC2-AG is designed to remove moisture droplets, salt mist and liquid aerosols from high-velocity air. It is used in turbine intake systems, offshore platforms, coastal power stations and marine propulsion applications.
Yes. The PC2-AG is an OEM-equivalent direct replacement for the Premaburg PC2 system and is also designed for compatible Altair System 2, Altair Neptune and Altair Vega air intake systems.
Yes. The PC2-AG uses cleanable synthetic coalescing media with stainless-steel support mesh. Its 304L or 316L stainless-steel construction allows the filter to be cleaned and reused for repeated service.
Yes. The PC2-AG is positioned for gas turbine ventilation and air intake applications, where a coalescer panel can be selected according to the installed system and environmental requirements.
The PC2-AG specification sheet publishes salt removal performance when used in an SRS Technology system, including 99.78% at 3 m/s, 99.95% at 6 m/s and 99.98% at 9 m/s for the listed PC2 configurations.
Yes. Airguard Envirocare specifically lists the PC2-AG for offshore wind turbine air intake applications, as well as gas turbine, engine, and HVAC systems.
Yes. Provide the existing OEM part number, filter dimensions, frame depth, airflow, and filtration specification. Airguard Envirocare can use this information to assess the appropriate PC2-AG or alternative coalescer panel replacement.
Both PC2-AG and PC1-AG are listed for gas turbine ventilation, diesel and gas engine intake, HVAC, and offshore wind applications. The correct filter should be selected by matching the existing specification, performance requirements, and physical dimensions rather than the product name alone.
PC2-AG should be selected according to the environmental conditions stated in its product specification, including factors such as dust, moisture, salt, humidity, temperature, and airborne contamination where applicable. The installed system and required filtration performance should be checked before selection.
Where PC2-AG is identified as Altair-compatible, Airguard Envirocare positions it as an OEM-equivalent or specification-matched replacement. Exact compatibility should be confirmed against the installed filter's part number, dimensions and required performance. The available product information identifies Altair System 2, Altair Neptune and Altair Vega compatibility and lists gas turbine, engine, HVAC and offshore wind applications.
Yes. Airguard Envirocare can provide available technical information for PC2-AG, including technical datasheets, technical drawings, and other relevant information on request.
The PC2-AG manufacturing origin is the United Kingdom.
Depending on the product, order requirements and delivery location, PC2-AG can be delivered in approximately 2 to 7 working weeks.
Use of an alternative filter should not be described as automatically voiding a gas turbine warranty. Warranty terms are set by the turbine OEM and the applicable contract, so customers should confirm the requirements with the OEM or operator before installation. Where this product is used as an OEM-equivalent replacement, its dimensions and performance specifications should be verified for the specific installation.
Yes. Airguard Envirocare offers a 12-month manufacturer's warranty for PC2-AG.
