Product Overview

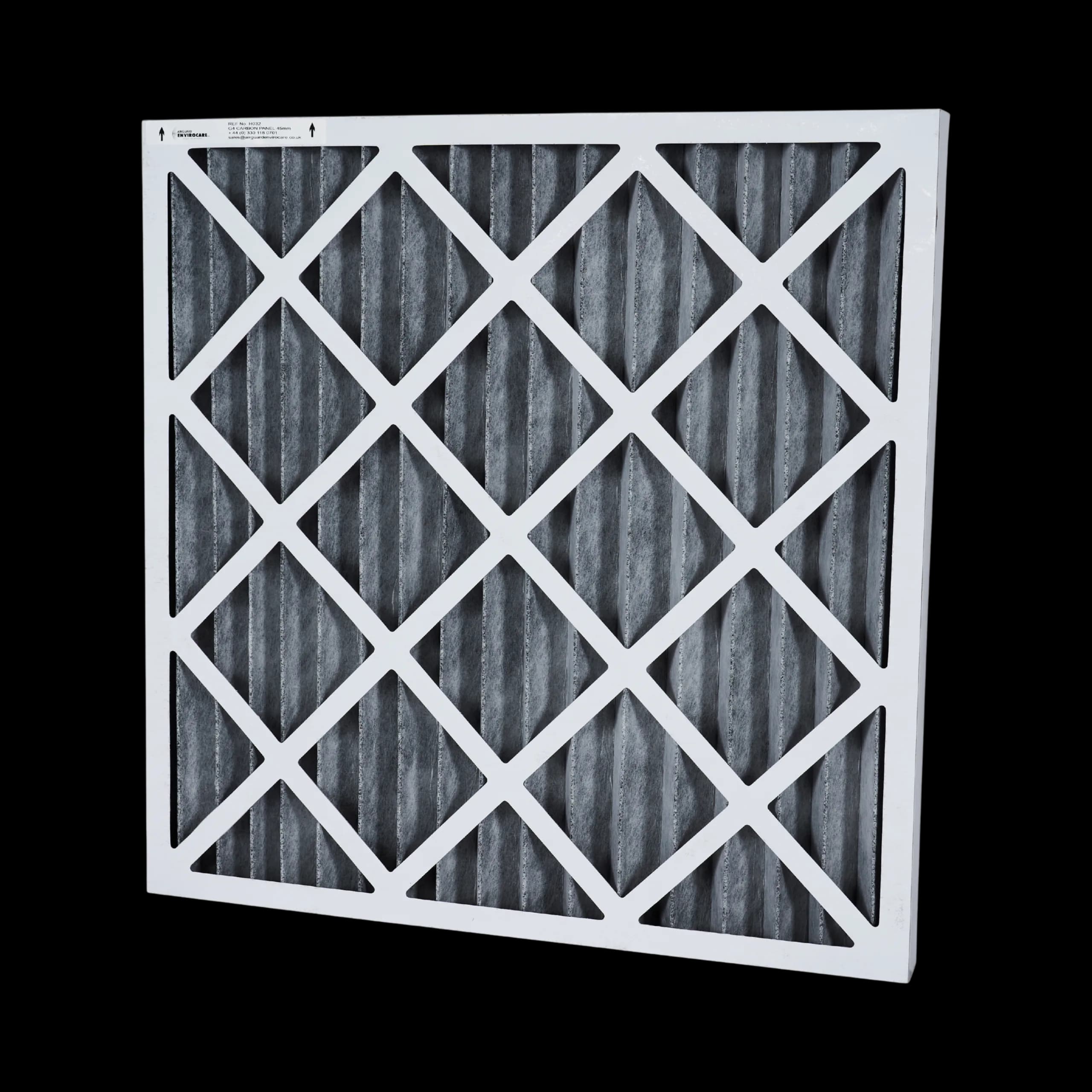

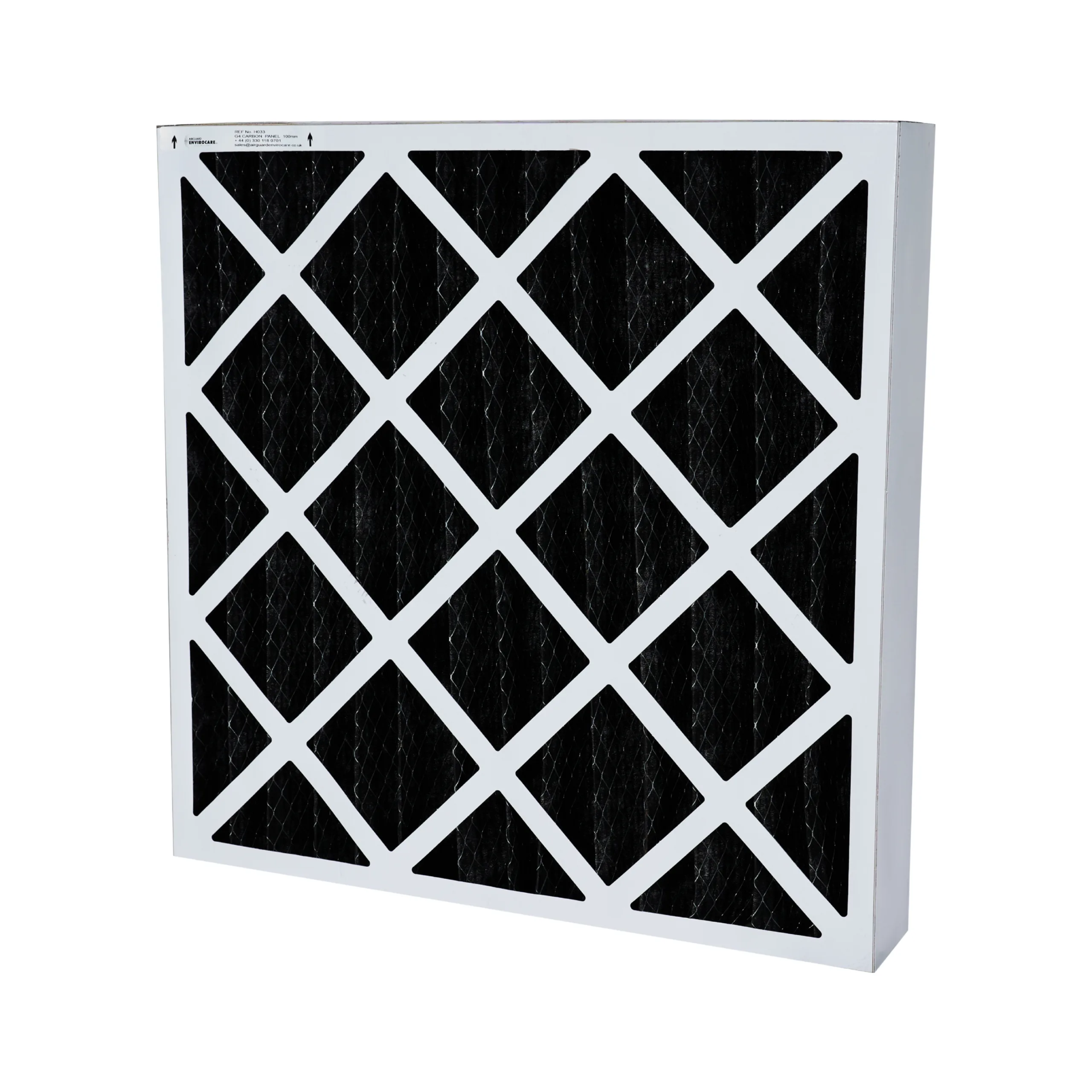

Designed to remove odours and low gaseous contaminants, the Airguard Carbon Panel helps to improve Indoor Air Quality in a wide range of applications.
Manufactured from a synthetic non-woven media impregnated with carbon, it is laminated to a wire support grid and enclosed in a rigid, waxed-outer-frame for maximum strength and support.
Technical Specifications
- Wide range of standard sizes off the shelf
- Non-standard sizes available and made to order
- Waxed Card Frame as standard
- Beverage Board Frame available upon request
- Metal frames available
Size Table 50 mm Nominal (45 mm Actual):
| Nominal Size (mm) | Actual Size (mm) | Rated Capacity (m³/s) | Initial Resistance (Pa) | Final Resistance (Pa) |
|---|---|---|---|---|
| 300 x 300 | 287 x 287 | 0.17 | 80 | 250 |
| 380 x 380 | 375 x 375 | 0.36 | 70 | 250 |
| 450 x 450 | 445 x 445 | 0.40 | 70 | 250 |
| 380 x 500 | 368 x 495 | 0.36 | 70 | 250 |
| 400 x 500 | 395 x 495 | 0.39 | 60 | 250 |
| 500 x 500 | 495 x 495 | 0.60 | 60 | 250 |
| 300 x 600 | 287 x 595 | 0.35 | 60 | 250 |
| 400 x 600 | 395 x 595 | 0.47 | 60 | 250 |
| 450 x 600 | 445 x 595 | 0.53 | 60 | 250 |
| 500 x 600 | 495 x 595 | 0.62 | 60 | 250 |
| 600 x 600 | 595 x 595 | 0.70 | 60 | 250 |
| 400 x 635 | 395 x 620 | 0.49 | 60 | 250 |
| 500 x 630 | 495 x 620 | 0.62 | 60 | 250 |
Size Table 100 mm Nominal (95 mm Actual):
| Nominal Size (mm) | Actual Size (mm) | Rated Capacity (m³/s) | Initial Resistance (Pa) | Final Resistance (Pa) |
|---|---|---|---|---|
| 450 x 450 | 445 x 445 | 0.51 | 80 | 250 |
| 400 x 500 | 395 x 495 | 0.51 | 80 | 250 |
| 500 x 500 | 495 x 495 | 0.64 | 80 | 250 |
| 300 x 600 | 287 x 596 | 0.46 | 80 | 250 |
| 500 x 600 | 495 x 595 | 0.76 | 80 | 250 |
| 600 x 600 | 595 x 595 | 0.92 | 80 | 250 |
| 400 x 630 | 395 x 620 | 0.63 | 80 | 250 |
| 500 x 625 | 495 x 620 | 0.83 | 80 | 250 |
Typical Applications
Application
Office
Hotels
Hospitals
Data Centers
Food Industry
Pharmaceuticals
Buildings
Industrial Sector
