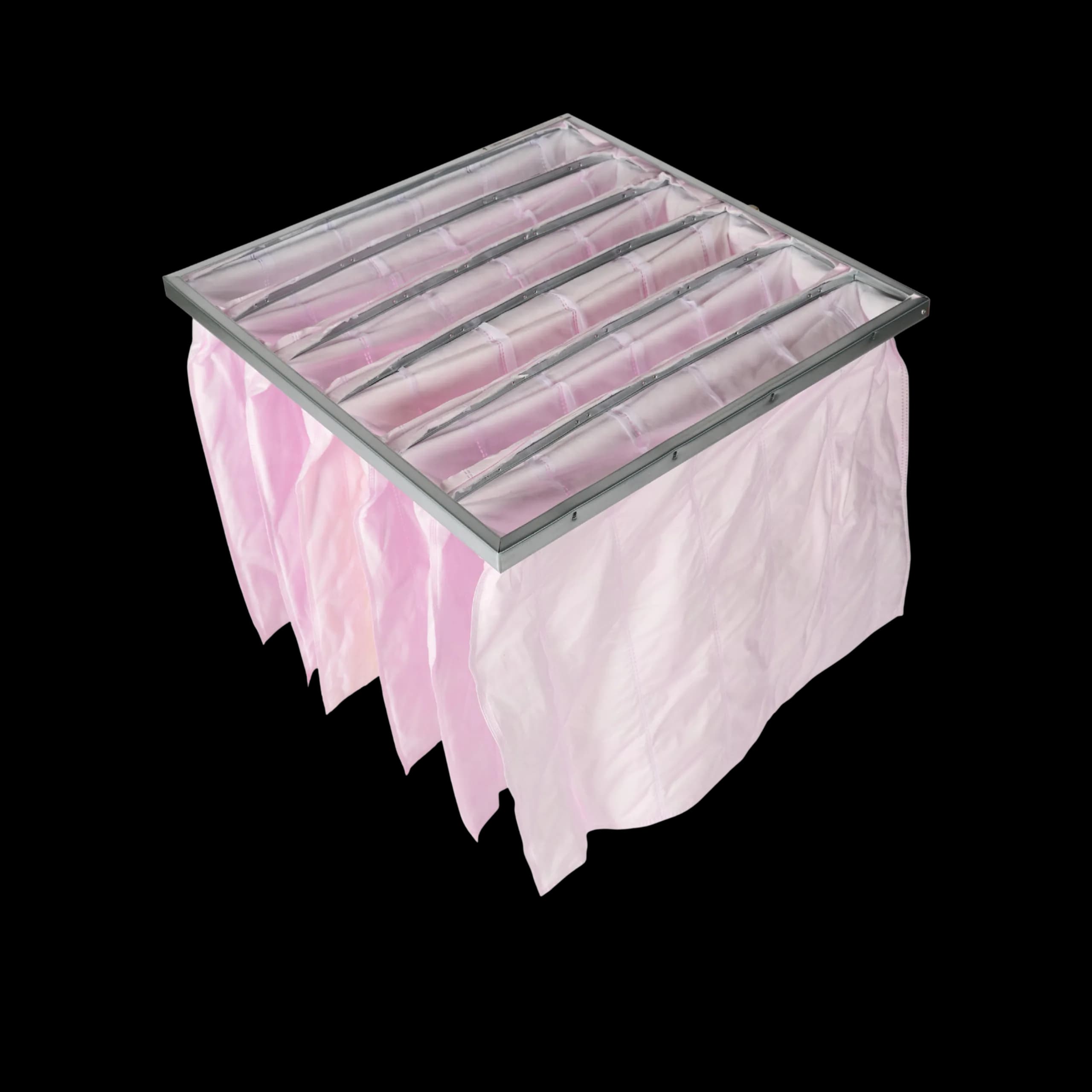

Product Overview
The F9 Bag Filter is suitable for HVAC systems serving environments where air cleanliness is particularly important. Its multi-pocket construction provides a large filtration area and allows efficient use of the available filter housing.
Typical applications include office blocks, computer suites, data centres, hotels, hospitals, food industry facilities and pharmaceutical environments.
The filter can be supplied as a standard replacement or manufactured to suit bespoke dimensions and operating requirements.
Construction
The F9 Bag Filter uses high-efficiency synthetic filtration media arranged into multiple pockets. This design increases the effective filter area and provides a compact solution for high-performance HVAC filtration.
Standard and non-standard dimensions can be supplied to suit different air handling systems.
Technical Specifications
Attribute | Detail | Specification | Value |
Brand | Airguard Envirocare | Flow Rate | n/a |
Division | Filtration | Filter Efficiency Rating | n/a |
Industry | HVAC Commercial & Industrial | Operating Temperature | n/a |
Application | Office, Hotels, Hospitals, Data Centers, Food Industry, Pharmaceuticals, Buildings | Height | n/a |
Technology | n/a | Width | n/a |
Product Type | HVAC Pocket / Bag Filters | Depth | n/a |
Product Style | HVAC Filter | Outside Diameter | n/a |
Media | n/a | Inside Diameter | n/a |
Materials of Construction | n/a | Weight | n/a |
Classification | n/a | Non-standard Size | n/a |
ISO 16890 filter classification
F9 efficiency
High-efficiency fine particulate filtration
Multi-pocket construction
Suitable for demanding HVAC applications
Standard sizes available
Non-standard sizes available
Suitable for replacement and new installations
20mm Galvanised header as standard (25mm available as an option)
Size Table ISO 16890 ePM10 80% (EN779:2012 F9)
Nominal Size (mm) | Actual Size (mm) | Pockets | Capacity (m³/s) | Initial (Pa) | Final (Pa) |
|---|---|---|---|---|---|
600 x 300 x 380 | 592 x 287 x 380 | 3 | 0.24 | 145 | 500 |
600 x 500 x 380 | 592 x 492 x 380 | 5 | 0.39 | 145 | 500 |
600 x 600 x 380 | 592 x 592 x 380 | 6 | 0.47 | 145 | 500 |
600 x 300 x 500 | 592 x 287 x 500 | 3 | 0.30 | 155 | 500 |
600 x 500 x 500 | 592 x 492 x 500 | 5 | 0.50 | 155 | 500 |
600 x 600 x 500 | 592 x 592 x 500 | 6 | 0.58 | 155 | 500 |
600 x 300 x 635 | 592 x 287 x 635 | 3 | 0.36 | 155 | 500 |
600 x 500 x 635 | 592 x 492 x 635 | 5 | 0.61 | 155 | 500 |
600 x 600 x 635 | 592 x 592 x 635 | 6 | 0.72 | 155 | 500 |
Applications
Office
Hotels
Hospitals
Data Centers
Food Industry
Pharmaceuticals
Buildings
Industrial Sector
Request Pricing
Share part number/spec, dimensions, airflow and efficiency—our team will respond within 24 hours.
The Process
How It Works
Get in touch with our experts, and we'll deliver the right product to meet your exact expectations.
1
Get in Touch
Contact us with your filter requirements, environment details, or existing OEM part numbers.
Online enquiryDirect callEmail request
2
Expert Consultation
Our filtration specialists review your needs and identify the ideal solution for your sector.
Spec matchingPerformance reviewCustom sizing
3
Fast Quotation
Receive a competitive, comprehensive quote within 24 hours.
Cost-effective pricingTransparent termsVolume discounts
4
Precision Manufacturing
Your filters are manufactured or assembled to exact OEM-level specifications.
UK assemblyQuality auditsISO 9001 certified
5
Reliable Delivery
Your products are shipped with predictable lead times, ensuring operations never miss a beat.
Global shippingTimely deliveryOrder tracking
1
Get in Touch
Contact us with your filter requirements, environment details, or existing OEM part numbers.
Online enquiryDirect callEmail request
2
Expert Consultation
Our filtration specialists review your needs and identify the ideal solution for your sector.
Spec matchingPerformance reviewCustom sizing
3
Fast Quotation
Receive a competitive, comprehensive quote within 24 hours.
Cost-effective pricingTransparent termsVolume discounts
4
Precision Manufacturing
Your filters are manufactured or assembled to exact OEM-level specifications.
UK assemblyQuality auditsISO 9001 certified
5
Reliable Delivery
Your products are shipped with predictable lead times, ensuring operations never miss a beat.
Global shippingTimely deliveryOrder tracking
1
Get in Touch
Contact us with your filter requirements, environment details, or existing OEM part numbers.
Online enquiryDirect callEmail request
2
Expert Consultation
Our filtration specialists review your needs and identify the ideal solution for your sector.
Spec matchingPerformance reviewCustom sizing
3
Fast Quotation
Receive a competitive, comprehensive quote within 24 hours.
Cost-effective pricingTransparent termsVolume discounts
4
Precision Manufacturing
Your filters are manufactured or assembled to exact OEM-level specifications.
UK assemblyQuality auditsISO 9001 certified
5
Reliable Delivery
Your products are shipped with predictable lead times, ensuring operations never miss a beat.
Global shippingTimely deliveryOrder tracking
Frequently Asked Questions
Common questions about f9 bag filter
Reviews
Customer Reviews
What customers say about f9 bag filter
4.4
(9 reviews)
Good communication on lead times
Kept us updated from order through to dispatch. The filters themselves have performed exactly as described.
Leah Novak
Consistent between batches
We order these regularly and the quality doesn't drift — same media, same fit, same performance every time.
Ryan Fletcher
Top quality and great support
Meets our stringent air quality targets and the support from Airguard helping us specify was first class. Highly recommend.
Hannah Barker
Low pressure drop, high dust holding
Holds up well under load and keeps our energy costs down. Very happy with the performance across the plant.
David Okafor
Exactly to spec, fast turnaround
Matched our OEM specification perfectly and was delivered within 24 hours. Excellent airflow and build quality.
Priya Kowalski
Straightforward specification
Sent over our old filter details and got a like-for-like match back the same day. Fitted first time with no modifications needed.
Nathan Harrison
Effective and well made
Does the job well at a fair price. Would like a couple more size options, but the performance is excellent.
Grace Patel
Solid quality
Good build and consistent efficiency. Easy to install and the technical team helped us pick the right grade.
Michael Grant
Related Products
Explore other filter families that might suit your needs

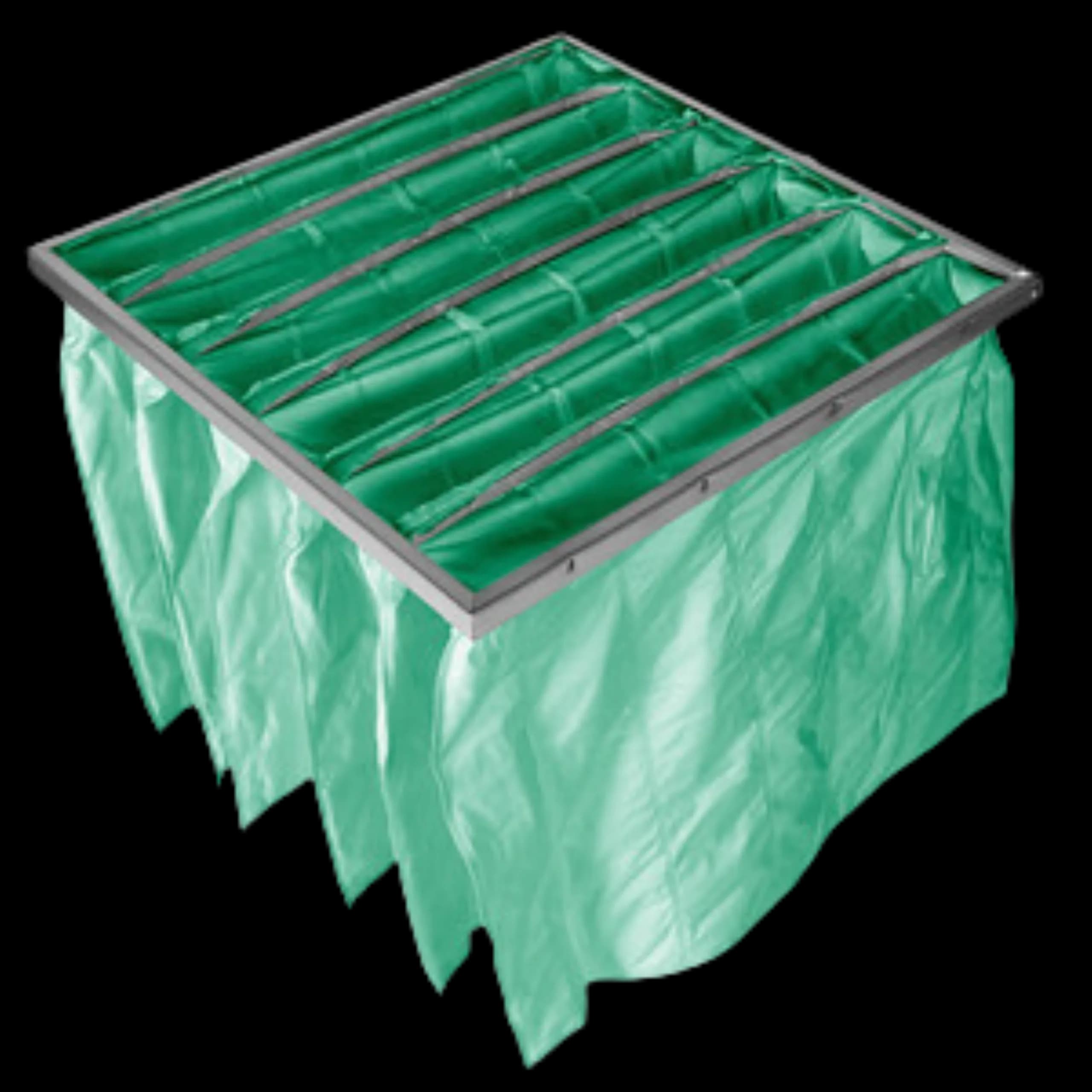

F6 Bag Filter
Airguard Envirocare F6 Bag Filters provide efficient medium-grade air filtration for commercial and industrial HVAC systems. Engineered for applications where dependable particulate removal, strong dust-holding capacity and consistent airflow are essential. Manufactured and supplied from the UK for customers worldwide, Airguard Envirocare can provide standard and made-to-order F6 HVAC bag filters to match your existing dimensions, airflow requirements and filtration specification.
Commercial & industrial HVAC Filtration Solutions

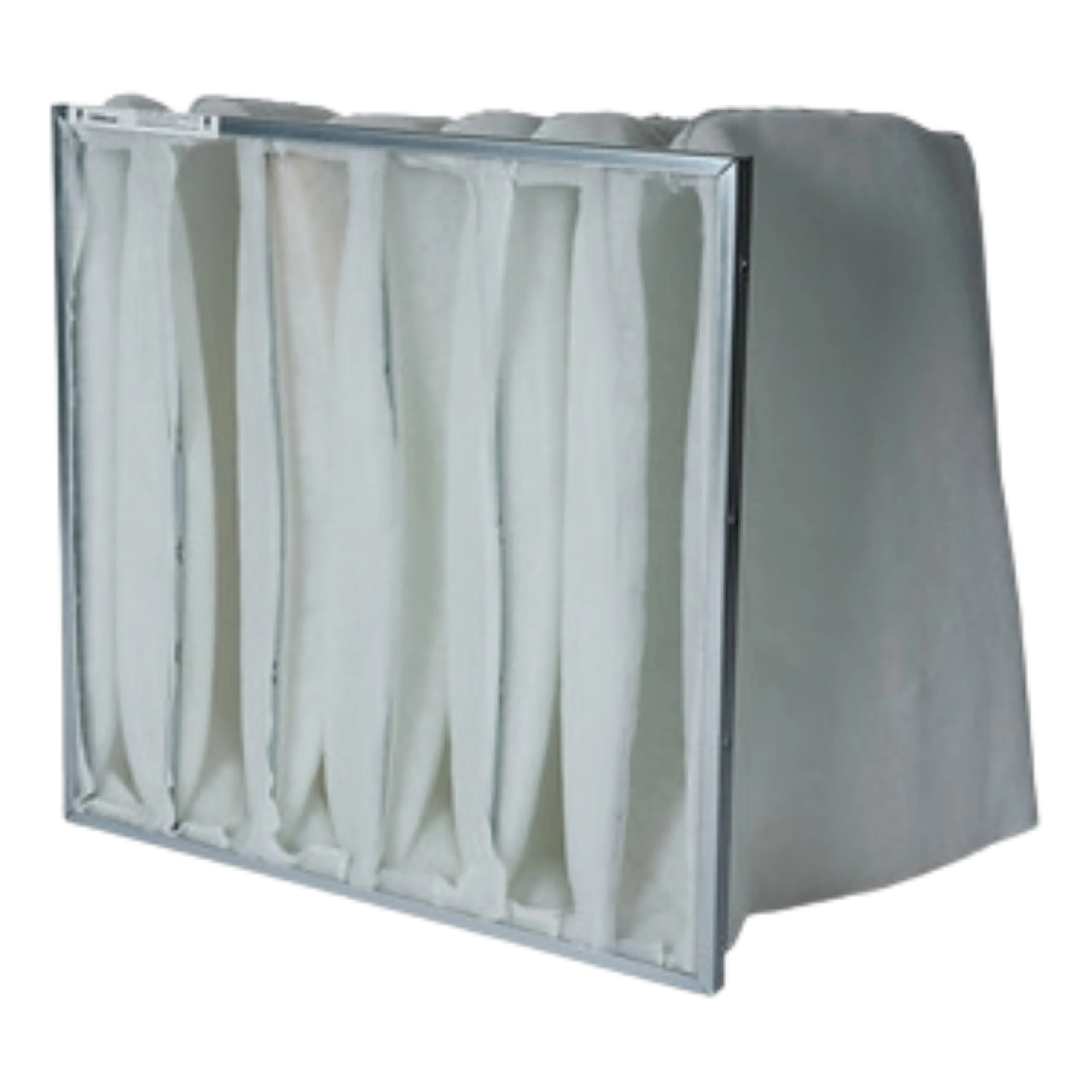

G4 High-Loft Filter
Airguard Envirocare G4 High-Loft Filters are designed for reliable coarse particulate filtration in commercial and industrial air handling systems. Their high-loft filter media provides an effective solution for applications requiring strong dust-holding performance and dependable airflow. Available in standard and bespoke sizes, our G4 high-loft pocket filters are supplied from the UK to customers worldwide.
Commercial & industrial HVAC Filtration Solutions
F8 Bag Filter
Airguard Envirocare F8 Bag Filters provide high-efficiency particulate filtration for demanding commercial and industrial HVAC applications. Engineered for environments where improved air cleanliness is required, these pocket filters offer a large filtration area and effective dust retention. Supplied from the UK to customers worldwide, our F8 pocket filters are available in standard and custom sizes.
Commercial & industrial HVAC Filtration Solutions
F7 Bag Filter
Airguard Envirocare F7 Bag Filter is a high-performance F7 pocket filter designed for commercial and industrial HVAC systems. Manufactured from approved synthetic media and formed into heat-sealed pockets, it delivers dependable particulate filtration with high dust-holding capacity and low initial pressure loss. Suitable for office buildings, computer suites, data centres, hotels, hospitals, food processing and pharmaceutical facilities, the F7 Bag Filter is available in a wide range of standard sizes, with bespoke sizes made to order.
Commercial & industrial HVAC Filtration Solutions

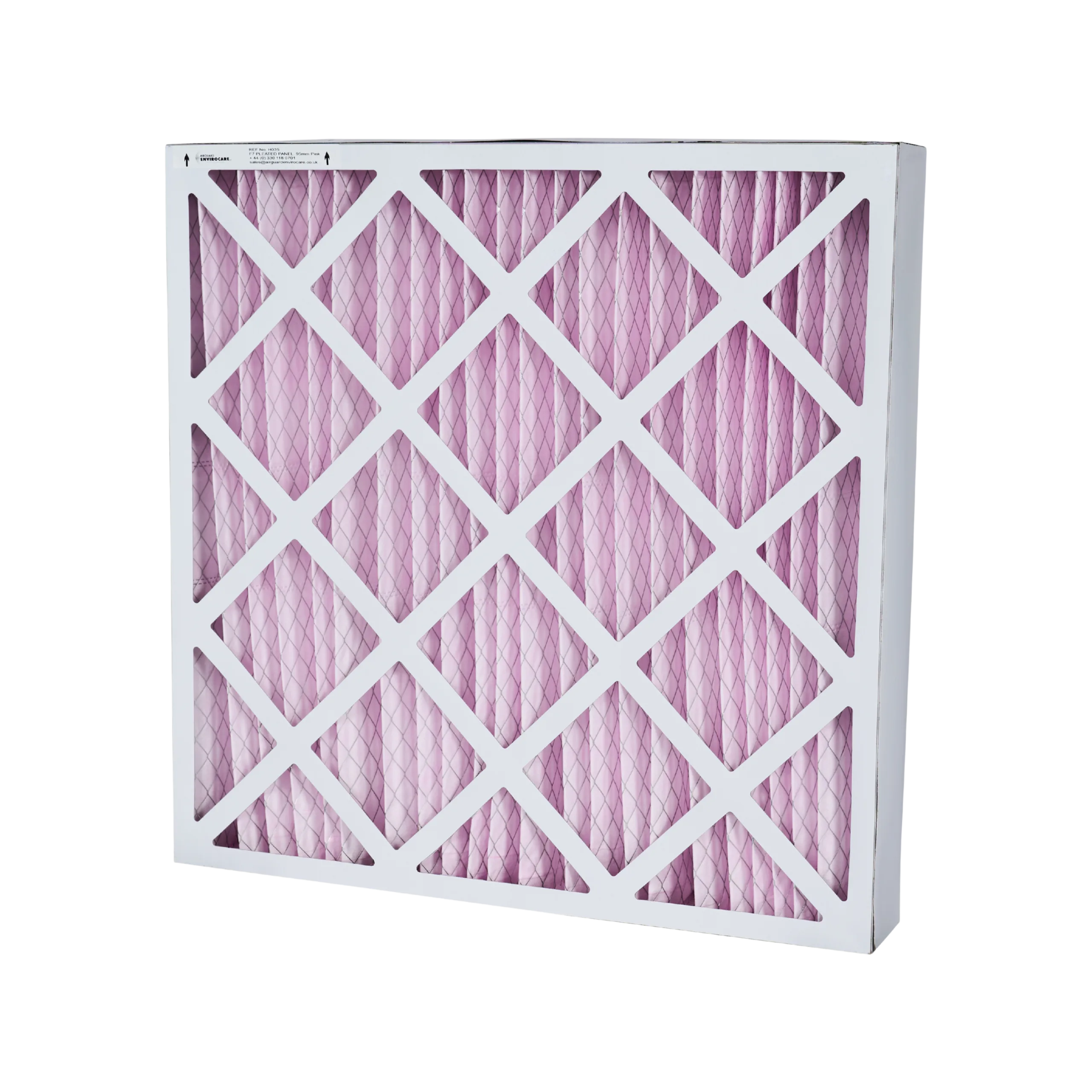

F7 Panel Filter
